Sensible Plate Heat Exchanger
- Sensible heat recovery
- Total separation of fresh air & exhaust air streams
- Heat recovery efficiency up to 80%
- 2-side press shaping
- Double folded edge
- Completely joint sealing.
- Resistance of pressure difference up to 2500Pa
- Under pressure of 700Pa, air leakage less than 0.6%
B series (standard type)
Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Max. air temperature 100℃, it is suitable for most of the occasion.
F series ( Anti-corrosion type)
Heat exchanger is made of pure aluminum foils cover by special anti-corrosion material, with galvanized end cover and aluminium alloy wrap angle., it is suitable for the corrosive gas occasion.
G series (high temperature type)
Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Sealing material is special and allow the Max. air temperature to be 200℃, it is suitable for special high temperature occasion.
Aluminum foils thickness range from 0.12 to 0.18mm because of the different specification heat exchanger.

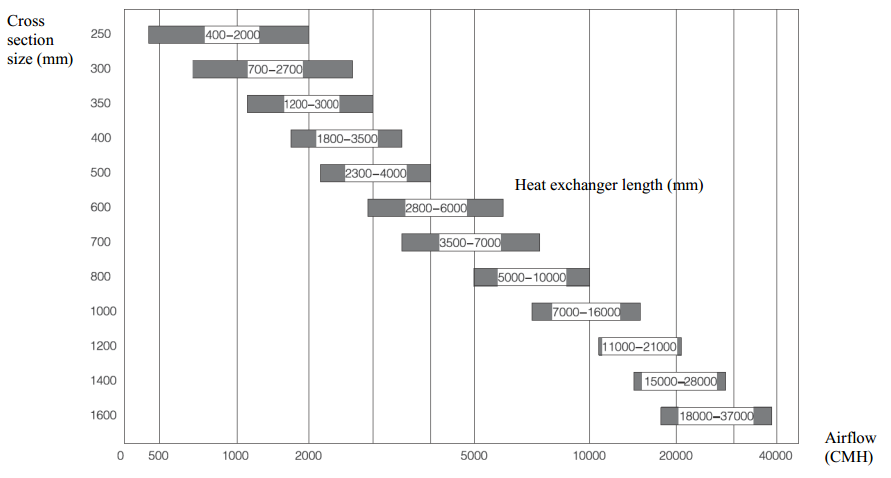

Heat exchanger size and air volume
|Model||A (mm)||B (mm)||C (mm)||Length per piece (L)||Optional spacing (mm)||Remarks|
|HBS-ZF500/500||500||500||710||<=550||6.0, 8.0, 10.0|
|HBS-ZF600/600||600||600||851||<=550||6.0, 8.0, 10.0|
|HBS-ZF1000/1000||1000||1000||1417||<=500||6.0, 8.0, 10.0||Four modules combined|
|HBS-ZF1200/1200||1200||1200||1702||<=500||6.0, 8.0, 10.0|
